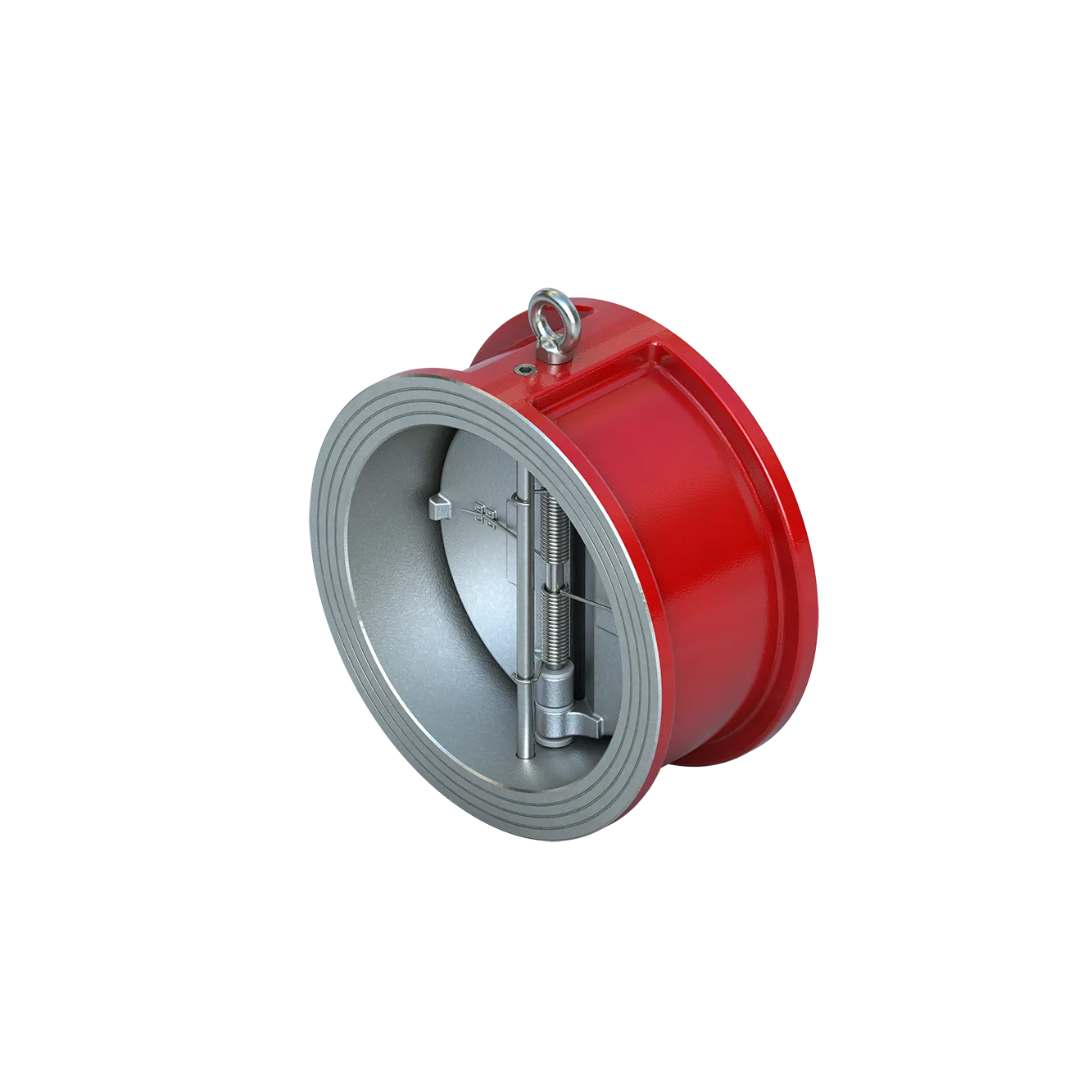

Bray Rite Double Door Check Valve https://brayprod.azurewebsites.net/images/default-source/products/check-valves/rite_check_doubledoor_4in-thumbnail.png?sfvrsn=76e0e19_2

Check Valve

Double Door

Size Range
2” to 12” (50mm to 300mm)
Temperature Range
-50°F to 300°F EPDM, -40°F to 250°F Buna
Maximum Allowable Operating Pressure
Class 150

Specifications

Check Valve - Double Door

Size Range
2” to 12” (50mm to 300mm)
Body Materials
Ductile Iron, Stainless Steel
Temperature Range
-50°F to 300°F EPDM, -40°F to 250°F Buna
Spacer materials
PTFE
Maximum Allowable Operating Pressure
Class 150
Seat Materials
EPDM, Buna
Shutoff Rating
API 598
Disc Materials
SS316
Body Style
Wafer Swing Type
Design Standard
API 594
Certifications
CE, CRN, NSF-61, PED
Testing Standard
API 598
Face to Face
API 594
applications
Pump Protection, Water Hammer Reduction

Features & Benefits

Energy-Efficient Protection Against Flow Reversal

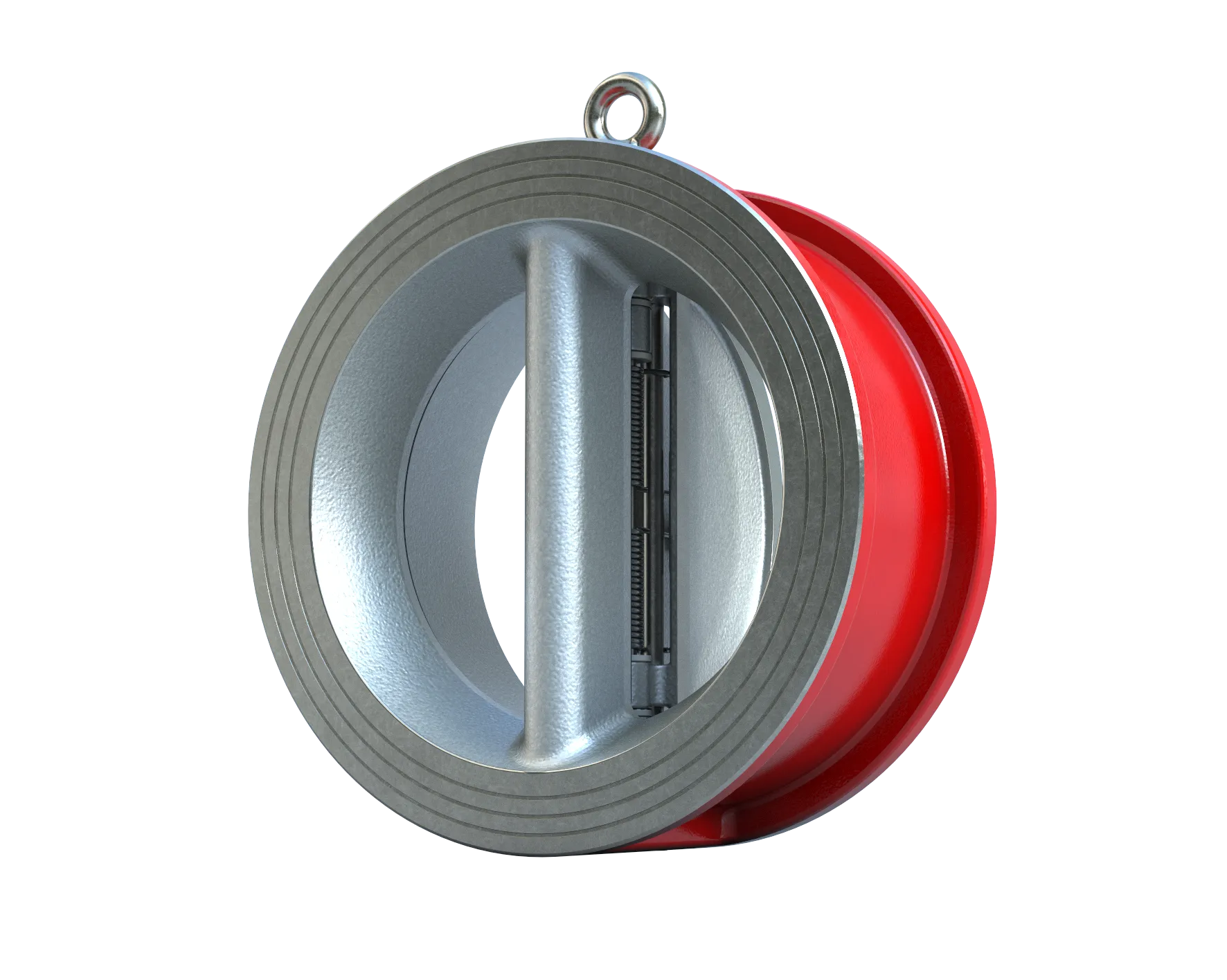

Bray's Rite Double Door Check Valve features lightweight dual discs, responsive independent springs, and a durable resilient seat for reliable flow-activated operation with tight sealing and reduced water hammer potential.



Features

COST EFFICIENT DESIGN: Low weight and short laying length saves initial cost, requires less space, and is easier to install

QUICK CLOSE: Independent springs provide quick-closing, non-slam shutoff for reduced water hammer potential

LOW CRACKING PRESSURE: Lightweight, spring-loaded discs have
low cracking pressure for energy efficient operation

MINIMAL HEAD LOSS: Contoured body provides a short and straight flow path with minimal turbulence
