Replaceable Components Minimize Downtime and Maximize Operational Efficiency

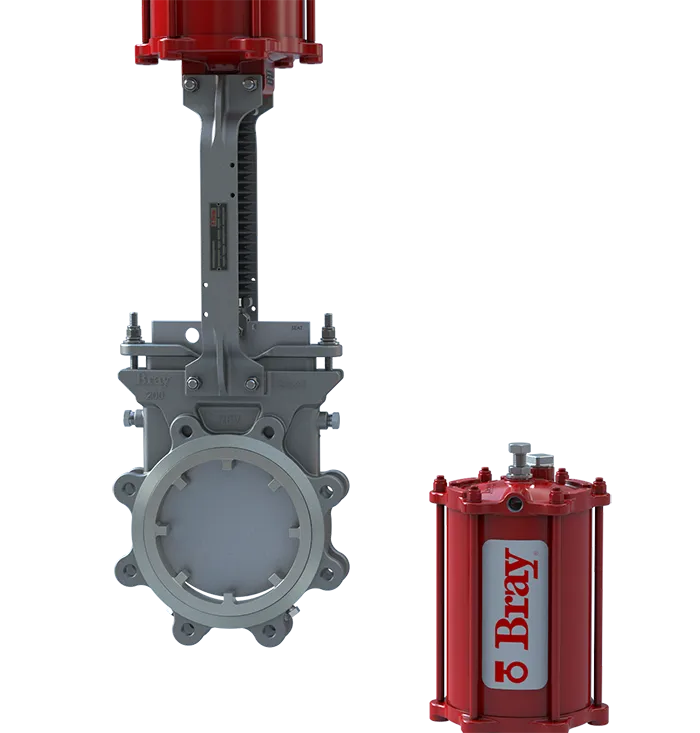

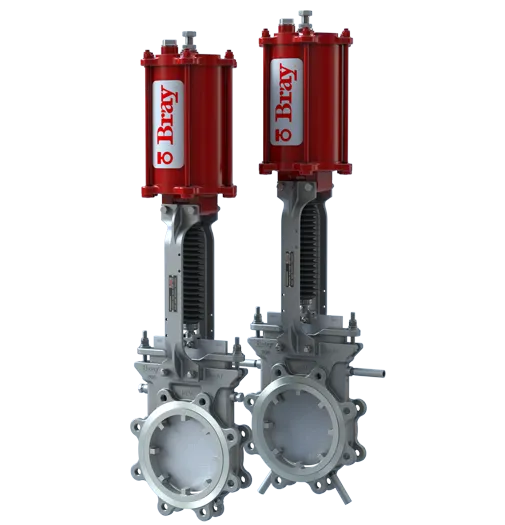

Self-Draining Vortex Breaker Valve for Demanding Industrial Processes
More Details
Features & Benefits
- Designed for exceptional performance in knotters, rejects, pulpers, scavengers and cyclone cleaners.
- Specifically designed for high-cycle applications.
- Replaceable Vortex Breaker with Hi-Chrome and tungsten carbide overlay for extended duty.
- Standard integral metal seat.
- Deflection resistant gate design ensures consistent alignment for industry leading durability.
- Unique body design with no dead pockets enables self-draining of valve.
- Lugged body suitable for all mounting orientations.
-

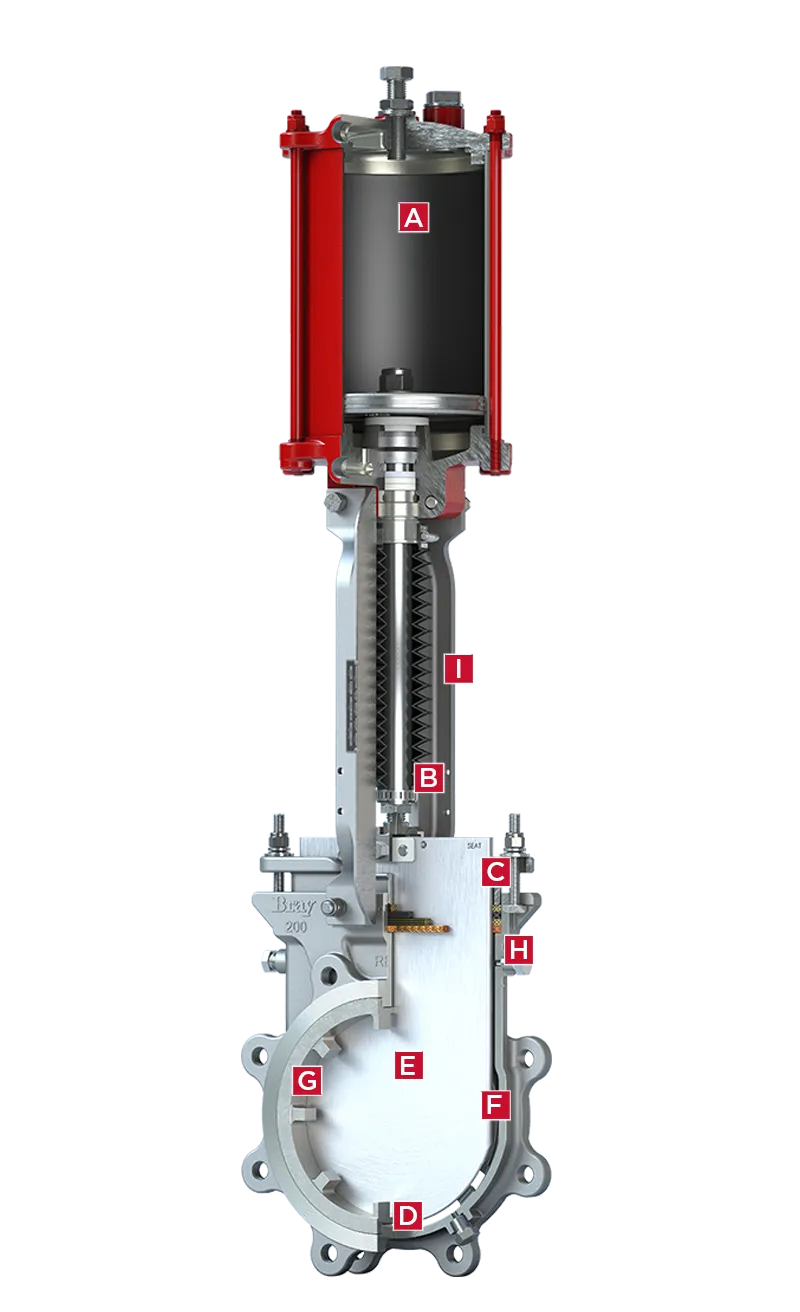

A. Topworks
Pneumatic actuator sized and designed for high cycle and ability to cut through heavy media.
-
B. Clevis
Clevis design and horizontal bolting stabilizes gate ensuring proper alignment and reducing failure points commonly found in knife gate valves.
-
C. Packing
High Performance packing system using a copper scraper and high performance packing, design includes machined packing chamber, live-loaded packing gland to assure extended cycle life and minimizes thrust of actuation.
-
D. Seat
Integral stainless metal seat engineered for high cycle life.
-
E. Gate
Abrasion resistant 17-4PH H-1025 gate.
-
F. Body
Lug-Style Single Piece Stainless Body.
-

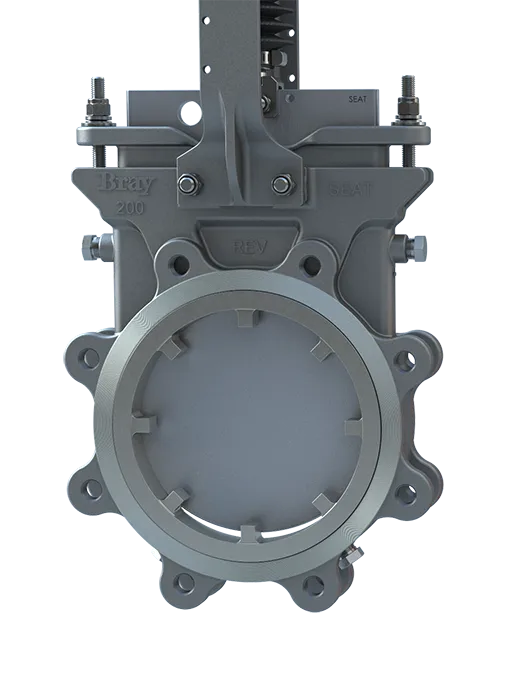

G. Vortex Breaker
Vortex Breaker is a replaceable wear component engineered to shear heavy media. Cast insert utilizing Tungsten Carbide overlay on the bore and flange face for increased performance and cycle life. Designed to support shear in cycle through media such as staples, bands, plastics and other type debris assuring the gate will cut through and cycle to the fully closed position.
-
H. Purge Ports
Purge ports in seat and chest area allow full flushing capability while cycling.
-
I. Yoke
Cast yoke superstructure robust design engineered for heavy duty actuators.
