Engineered to Meet Stringent Chemical Industry Standards with Superior Performance

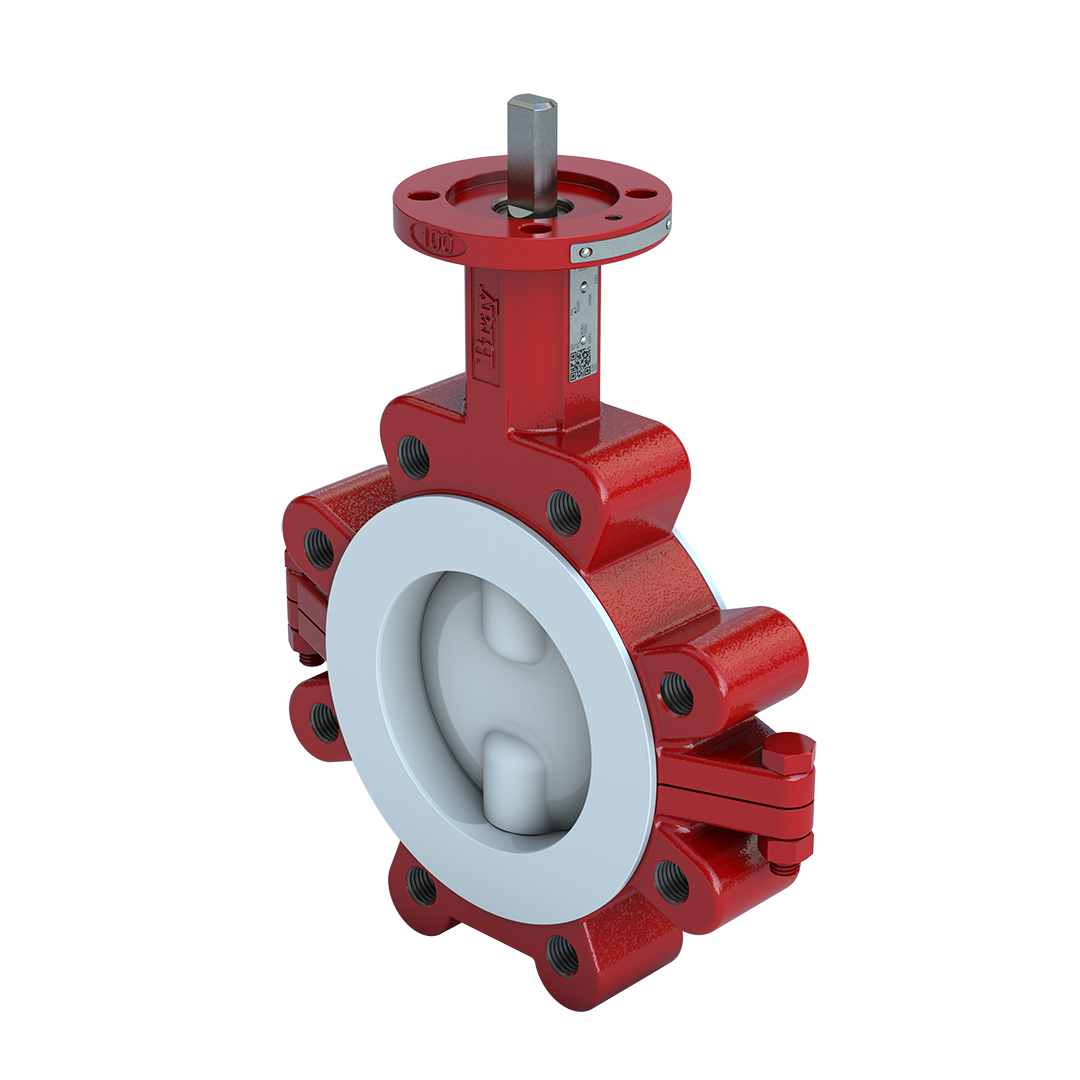

PTFE-Lined Butterfly Valve for Chemical and Corrosive Media Applications
More Details

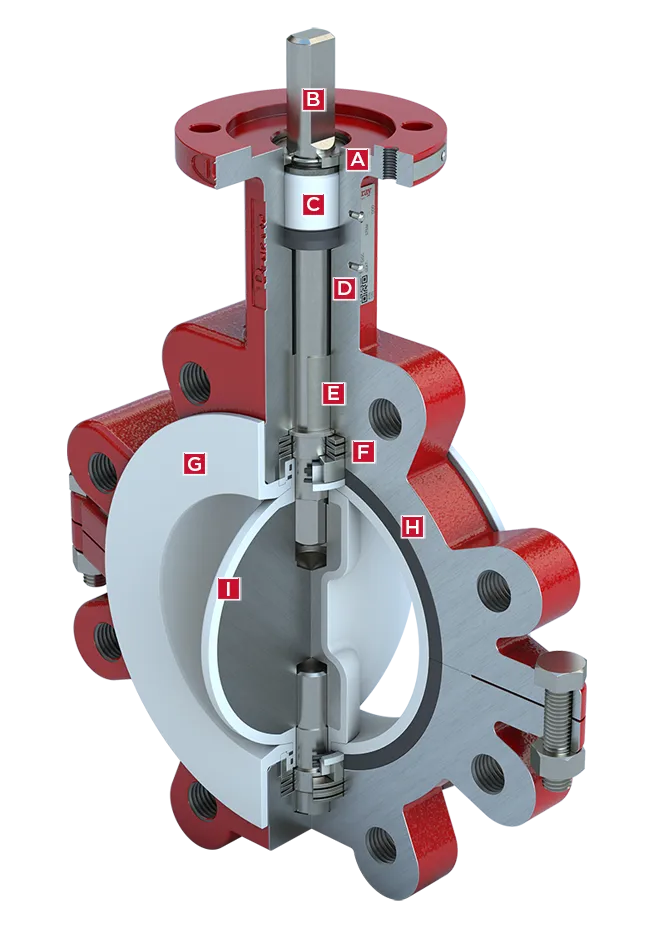

Features & Benefits
-
A. Digital Tag
Each valve is uniquely and easily identifiable by simply scanning the QR Code on the product identification tag in accordance to IEC 61406.
-
B. Electrostatic discharge through antistatic design
Electrostatic discharge through antistatic design (Ground washer and Top flange drilling).
-
C. Stem Design
The high-strength stem design combine blowout-proof functionality for safe operation and exceptional service life.
-
D. Stem Bushing
Non-corrosive, heavy duty acetal bushing absorbs actuator side thrust.
-
E. Bearings
PTFE impregnated steel bearings provided for the precision alignment of the upper and lower stem.
-
F. Stem Seal System
The live-loaded packing design features a primary and secondary sealing principle to comply with the most stringent fugitive emission requirements.
-
G. Seat Energizer
A resilient seat energizer extends completely around the seat, including the disc hub providing uniform force sufficient for zero-leakage.
-
H. Disc
The encapsulated disc has 3 mm minimum thickness of virgin-PTFE.
