Manual Operator for Valves Series 04 https://brayprod.azurewebsites.net/images/default-source/products/controls/s04/s04-0300_library_01thumbnail.png?sfvrsn=1a5f81d8_6

Manual Operator

Series 04

Output Torque
2000-24000 in-lbs
Power Source
Manual
Control Options
Manual

Specifications

Manual Operator - Series 04

Output Torque
2000-24000 in-lbs
Design Standard
N/A
Power Source
Manual
Certifications
ABS
Control Options
Manual
Valve Compatibility
Quarter Turn Valve
applications
Isolation / On-Off

Features & Benefits

Manual Gear Operator

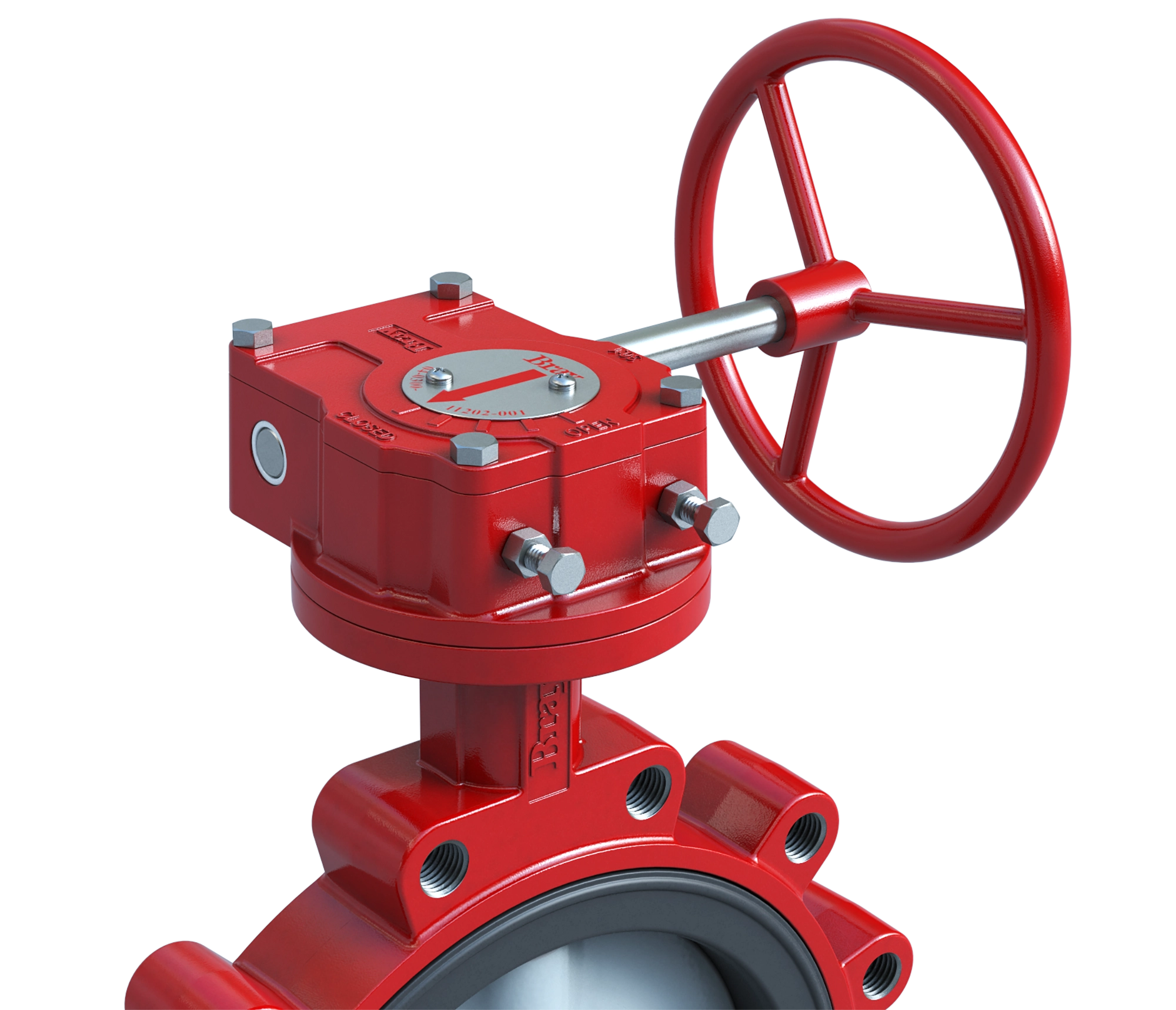

Introducing the Bray Series 04 Manual Gear Operator for heavy duty on/off and throttling service of 2” - 48” (50mm - 1200mm) valves. The Series 04 is self-lubricated for smooth, trouble-free operation. The rugged, cast iron body with O-ring body seals is weatherproof to IP65. A self-locking worm and worm gear drive holds the valve in the desired position. Features include a readily accessible handwheel, a valve-position indicator and mechanical travel stops which permit field adjustment of valve movement to specific degrees of rotation. Optionally available are chainwheel accessories, padlock kits and 2” square nut versions.
