Bray NAMUR S63 Solenoid

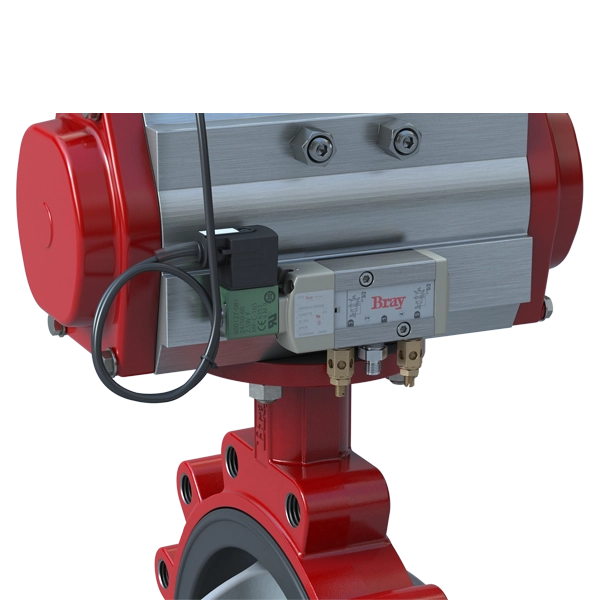

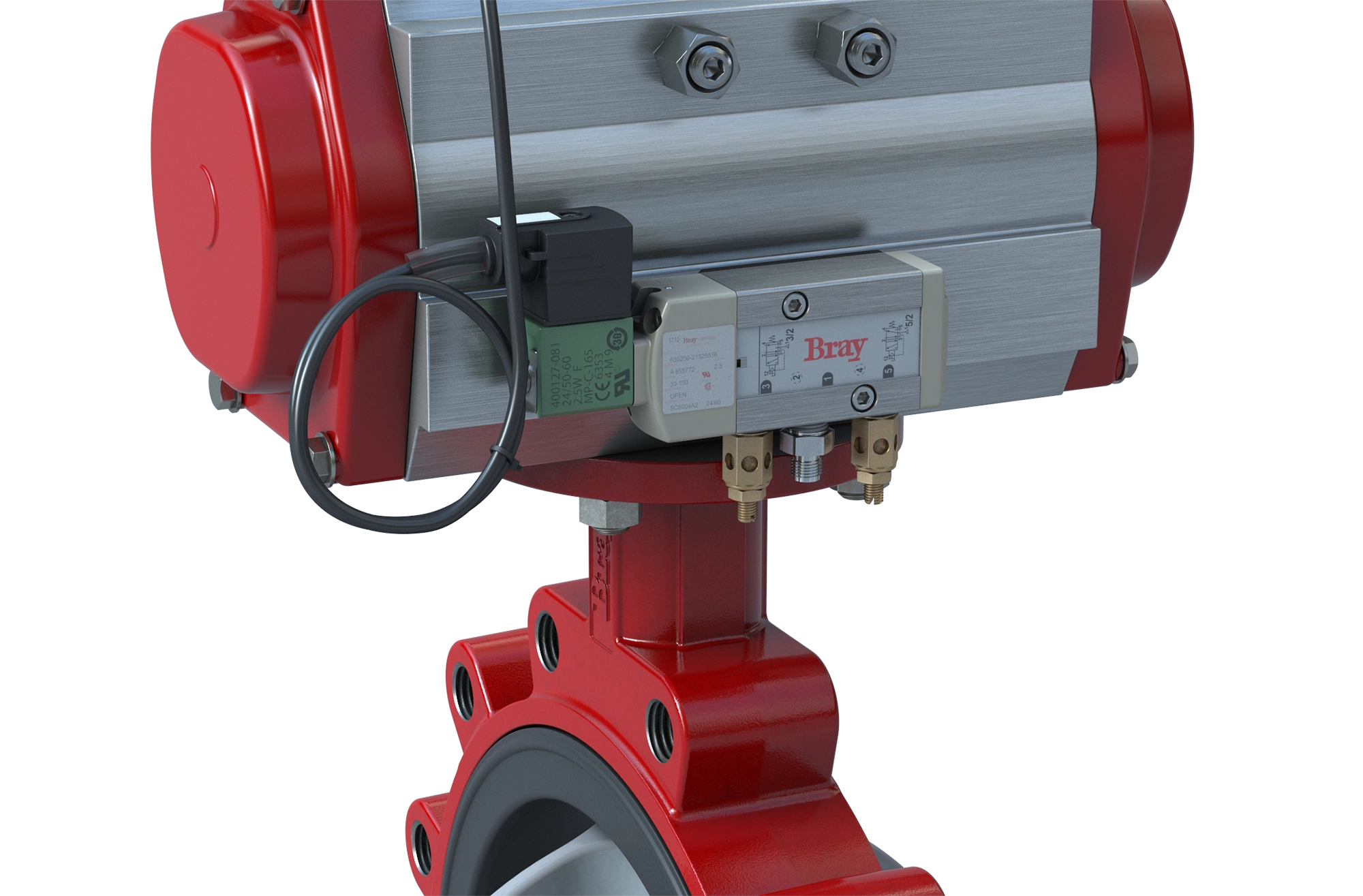

The Bray Series 63 solenoid valve is designed for direct mounting to Bray Series 92/93 pneumatic actuators, providing on/off control for the valve assembly. The coils come with UL and CSA certification, and all Series 63 solenoids carry the CE mark. It's a great choice for both general purpose and hazardous area applications.
Features
- Compact design with NAMUR mounting interface, reducing installation expense and complexity
- Suitable for use with both double and single acting pneumatic actuators
- Selectable 5/2 or 3/2 way function via interchangeable port configuration plate
- Closed loop configuration available on 3/2 way function solenoid valve, that vents air to spring side of actuator, preventing corrosion of the actuator
- Turn and lock manual override
- Various AC and DC electrical supply voltages available
Options
- Explosion-proof coil meeting Class I, Div I standards
- Dual or single coil
- Offered in flying leads and DIN connections
- Compatible with other Bray devices offering industrial communication protocols: CommPro, S54
