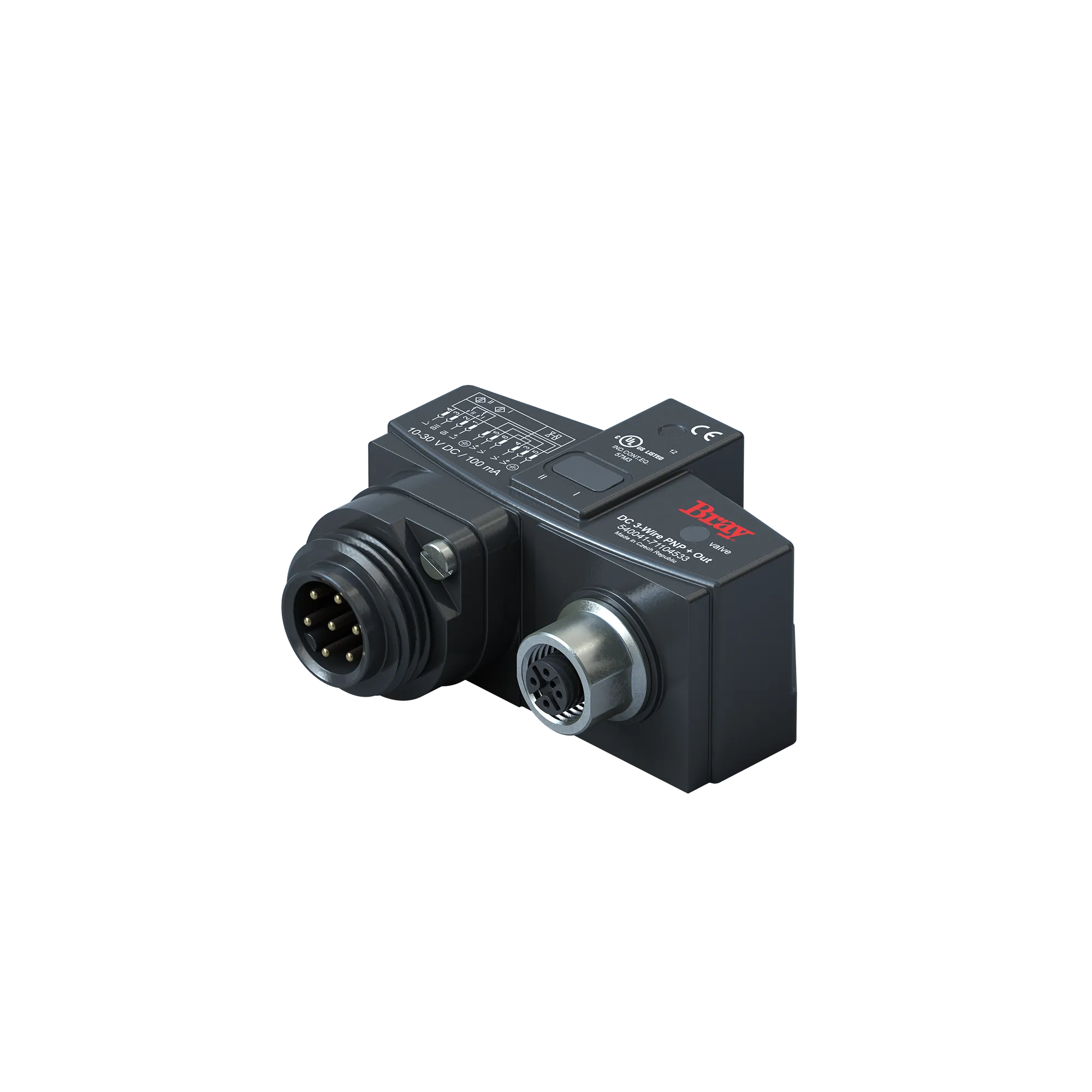

Proximity Sensor

Series 54

Switching Function
PNP, AC/DC: 2 x normally open (NO) AS-I: 2 x Programmable
Output Type
PNP, AC/DC, AS-I
Rated Operating Distance
0 ... 2.43 mm

Specifications

Proximity Sensor - Series 54

Switching Function
PNP, AC/DC: 2 x normally open (NO) AS-I: 2 x Programmable
Output Type
PNP, AC/DC, AS-I
Communication Protocols
AS-i
Rated Operating Distance
0 ... 2.43 mm
Enclosure Ratings
IP67
Mounting
NAMUR/ VDI VDE 3845
Switching Frequency
PNP: 0 - 500 Hz
AC/DC: 25 Hz
AS-i: 0 - 100 Hz
Temperature Range
-25 - 70°C (-13 - 158°F)
Certifications
cULus listed, general purpose
applications
Industrial

Features & Benefits

Inductive Proximity Sensor

The Series 54 proximity sensor provides position indication for quarter turn valves. The superior design offers reliable and durable valve monitoring and control solutions for efficient plant operation.

The compact Series 54 directly mounts to VDI/VDE 3845 compliant actuators resulting in a smaller actuator profile while saving on cost. Various electrical output options allow integration of the Series 54 into all standard process control environments.

Features:

  • Two independent sensors for open and close valve position indication
  • Optimal design for high pressure washdowns and caustic washdown service
  • Hermetically sealed to protect against the ingress of liquids or solids
  • Suitable for dirty process environments and rapid cycling applications
  • Rugged design resistant to shock, vibration, UV and corrosion
  • Maintenance free design
  • Non-contact sensor eliminates the effect of mechanical wear
  • Eliminates potential switch welding, arcing and sparking
  • Quick and easy installation
  • LED indication for sensor power, switch and solenoid status
  • AS-i sensor available for digital network solution for valve actuator interface
