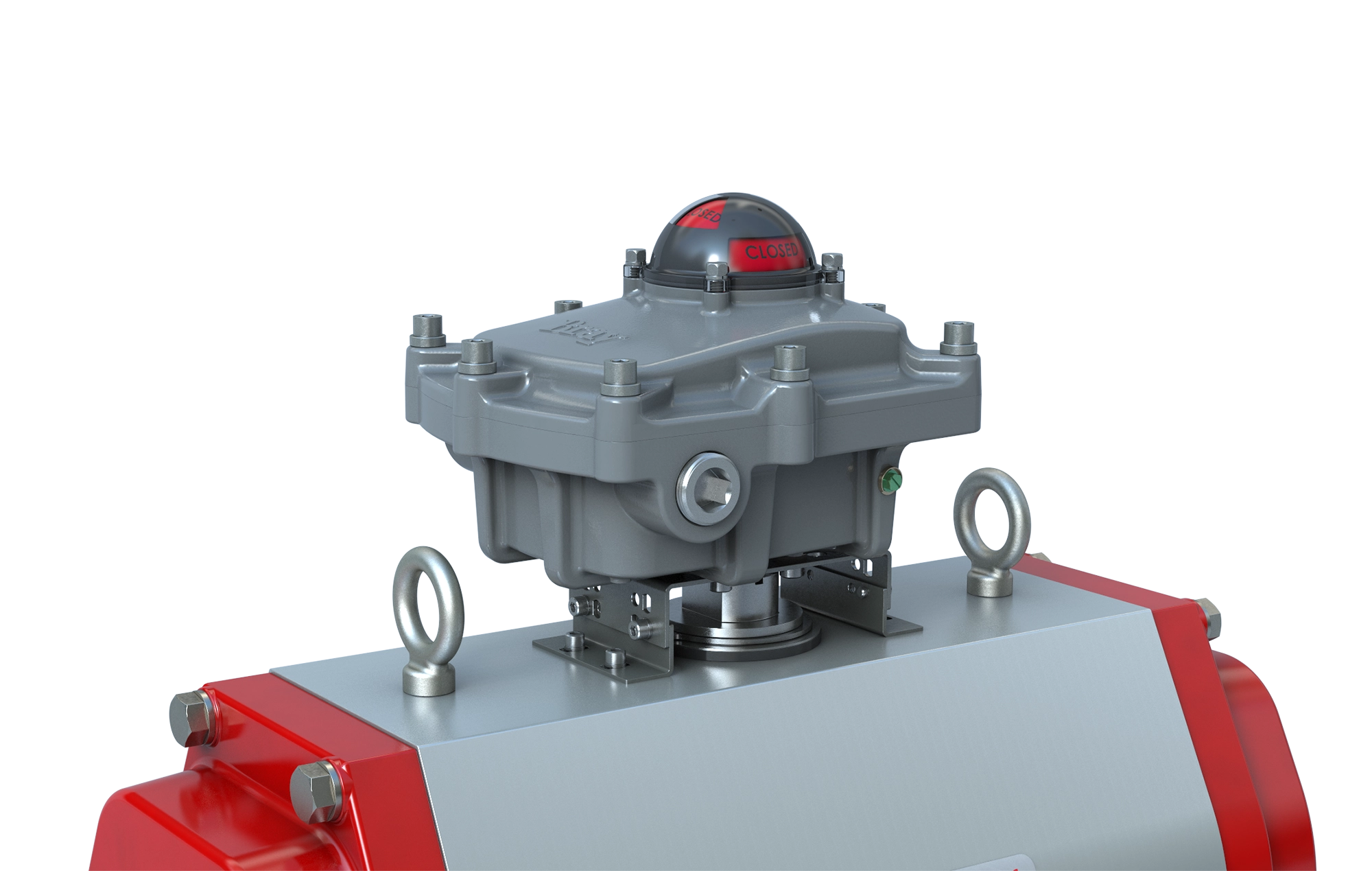

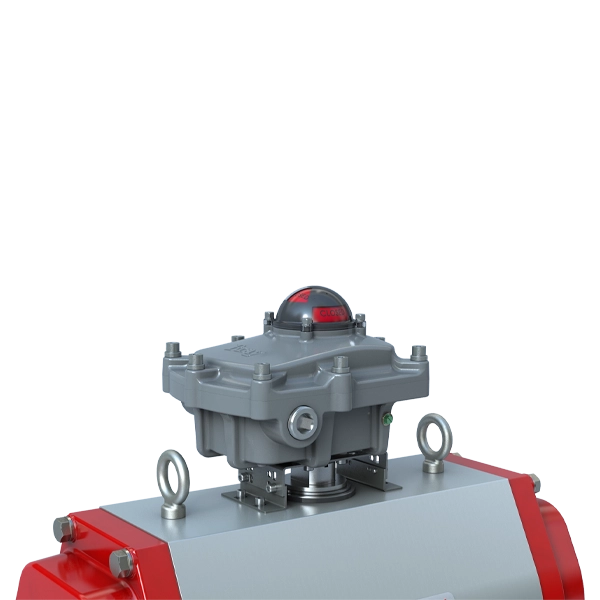

Compact and Durable Housing for Long-Lasting Performance in Harsh Environments
High-Visibility Dome Indicator for Accurate Valve Position Feedback
More Details
Features & Benefits
-
A. Enclosure
The compact low profile weatherproof VSM is UL certified NEMA Type 4, 4x and IP66/67/68. Aluminum base and cover for exceptional corrosion, wear and impact resistance.
-
B. High Visibility Position Indicator
Visual open and closed indication is provided with an impact resistant dome style indicator. Inverting the open and closed visual output is easily done by rotating the indicator dome 90 degrees. There is no need to remove the switchbox aluminum cover and expose internal wiring of the VSM to change position indication.
-
C. Stub Shaft Secondary Seal
Ensures indicator area is separate from the VSM’s internals. Provides a secondary seal to prevent water ingress should the dome or dome seal become compromised due to adverse site conditions.
-
D. Captive Cover Bolts
The cover is attached to the base by captive stainless steel bolts placed outside the sealing area.
-
E. Washers
Stainless steel corrosion resistant washers provide larger contact surface for the captive bolts to secure the cover to the base.
-
F. O-Ring Seal for Watertight Enclosure
The O-ring seal between the cover and base provides a weatherproof seal to prevent water ingress and internal corrosion.
-
G. Sensor Cams
Splined cam design allows for easy and accurate setting of switch activation without the use of tools.
-
H. Limit Switches
Up to six switch options and configurations to meet connectivity requirements.
-
I. Terminals
Clearly marked terminal blocks are angled towards the user to ensure easy access.
-
J. Conduit Entries
Three conduit entries available in either imperial or metric threads.
-
K. Grounding
Green color-coded, easy-access grounding bolt.
