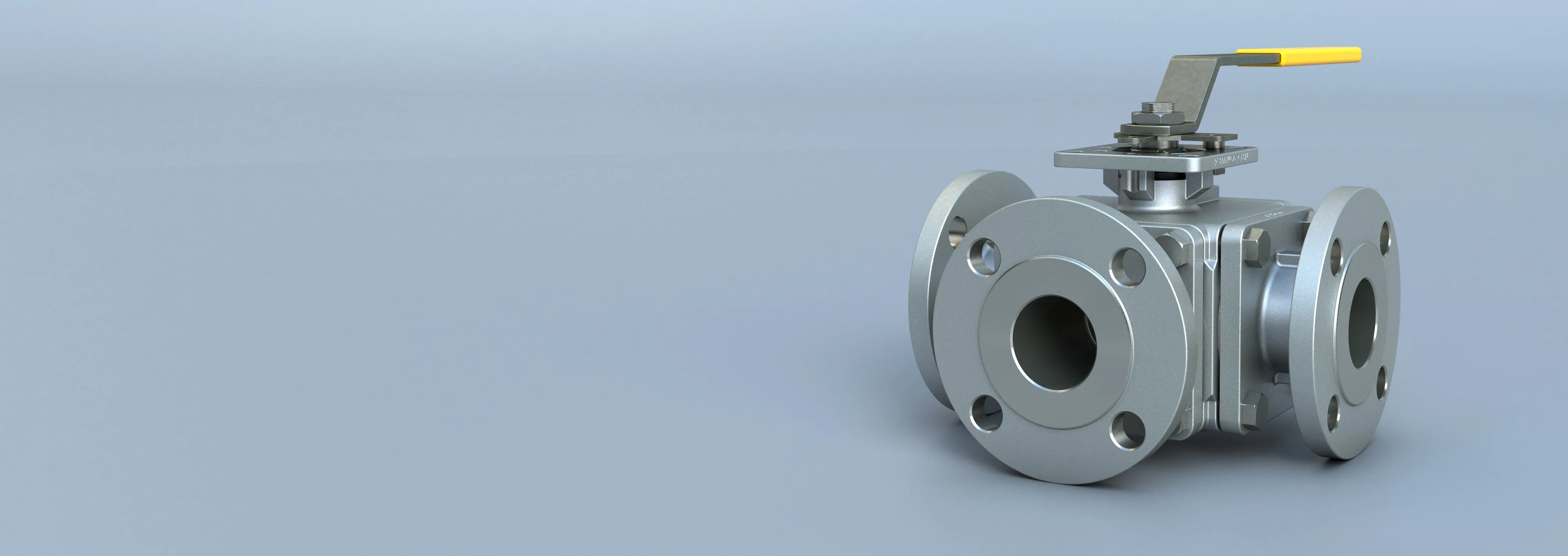

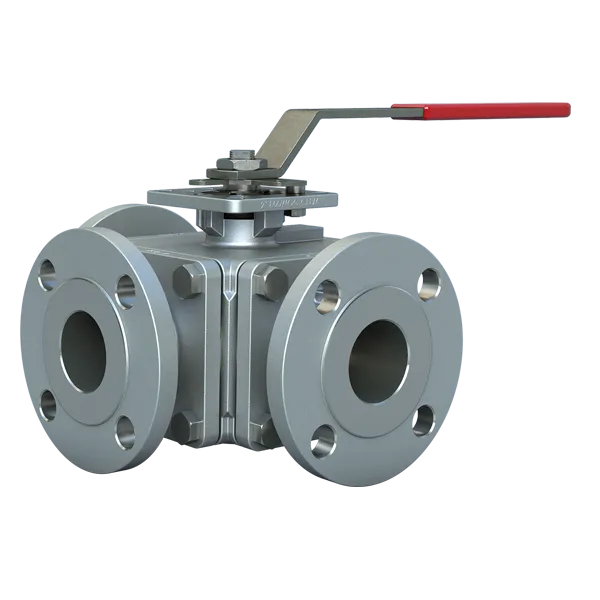

Multi-Port Ball Valve

Series MPF

Size Range
Class 150: 1/2" to 12" (13mm to 305mm), Class 300: 1/2" to 6" (13mm to 152mm)
Temperature Range
-25°F to 500°F
Maximum Allowable Operating Pressure
ASME 150: SS 275/WCB 285 psi, ASME 300: SS 720/WCB 740 psi

Specifications

Multi-Port Ball Valve - Series MPF

Size Range
Class 150: 1/2" to 12" (13mm to 305mm), Class 300: 1/2" to 6" (13mm to 152mm)
Body Materials
Stainless Steel, Carbon Steel
Temperature Range
-25°F to 500°F
Stem Materials
316 Stainless Steel
Maximum Allowable Operating Pressure
ASME 150: SS 275/WCB 285 psi, ASME 300: SS 720/WCB 740 psi
Seat Materials
TFM
Shutoff Rating
Zero Leakage
Ball Materials
Stainless Steel
Body Style
Compact Standard Port, Block-style Full Port
Design Standard
ASME 16.34
End Connections
Flanged Ends per ASME B16.5
Testing Standard
ASME B16.34, All valve stems and seats are tested to 100 psi gas closure test for bubble tight integrity before shipping, Vacuum Service to 29" Hg
Ports
Full 3-Way & 4-Way with L, T & LL Ports
Face to Face
Manufacturers Standard
applications
Mixing/blending line medias, Flow Diversion, Flow Bypass, Direct flow in/out of storage tanks, Shutoff flow from different directions

Features & Benefits

The Series MPF multi-port ball valves offer 3-way and 4-way flow control. The Multi-port Series valves are available in two different body styles, a compact standard port and a block style full port. Standard port valves are available with NPT Threaded and Quick Clamp end connections. Full port valves are available with NPT Threaded, Quick Clamp, Socket or Butt Weld, and Flanged end connections. End connections can be mixed on a single valve. Many parts are fully interchangeable between models. Cost effective Mult-iport Series ball valves feature multi-directional control combined with shutoff capacity in one valve. Valve duplication and the need for an extra shutoff valve are eliminated.

Testing

  • Tested in accordance with ASME B16.34
  • Vacuum Service to 29” Hg
  • Valve stems are blow-out proof for maximum safety and meet ASME B16.34 specifications
  • Valves conform to CE requirements



Features

STEM SEALS: Multiport Series 1/4” – 4” valves all feature a live-loaded stem packing assembly for positive stem sealing. Utilizing Belleville washers, the stem seal automatically adjusts to compensate for changes in temperature and normal wear. The 6”– 12” valves utilize an independent packing gland which can be easily adjusted while the valve is still in service. The 1/4”– 2” valves also offer primary and secondary stem sealing. The primary seal is a thrust washer and O-ring assembly. The adjustable stem packing creates a secondary seal between the stem and body in the upper stem journal area.

FOUR SEAT DESIGN: As standard, Multiport Series valves are supplied with an additional fourth seat. This seat acts as a self-contained seal to prevent leakage in the cavity area and maintains proper alignment of the ball. The added seat delivers bi-directional control and shutoff combined in one valve – with an OFF position in both T and L port balls. Flow-Tek’s seat design ensures bi-directional, bubble-tight sealing with low operating torque.

SEAT SELECTION: A wide range of seat materials are available to meet most applications. The standard seat is TFM. Options include RPTFE, PTFE, UHMWPE and Tek-Fil® (carbon/graphite filled TFM). Tek-Fil® seats offer reduced torque in high temperature, high cycle, and steam service applications.

INTERCHANGEABILITY: Many parts including balls, stems, seats, and stem and body seals are interchangeable between different models of the same size valve.

CAVITY FILLERS: Optional cavity fillers are available for Multiport models 230/240 and 150/300 valves. Cavity fillers reduce the possibility of media contamination due to line media fluids becoming entrapped in the void between the ball and the valve body wall.

SECURE MOUNT: The integral cast top flange ensures positive actuator mounting. Actuation equipment can be easily and safely removed while the valve is under full line pressure. The mounting flange is designed to ISO 5211 standards with direct flush-mount capabilities. By repositioning the travel stop pin bolt on the mounting flange, all flow patterns are available from the standard valve.

BALL/STEM: The ball and stem connection is designed to ensure a positive connection. 1/4”– 2” valve stems are pinned, 21/2” – 12” stems and balls are one piece with trunnion mounting. All stems offer blowout proof protection. Balls are precision machined and mirror finished for bubble-tight shutoff with less operating torque. Flow-Tek balls have machined edges to reduce seat wear providing a high life cycle.

Standard Applications

  • Mixing or blending of line medias
  • Diversion of flow to different locations
  • Bypass of flow around strainers, meters, heat exchangers, etc.
  • Direct flow out of or into storage tanks
  • Shutoff flow from different locations
